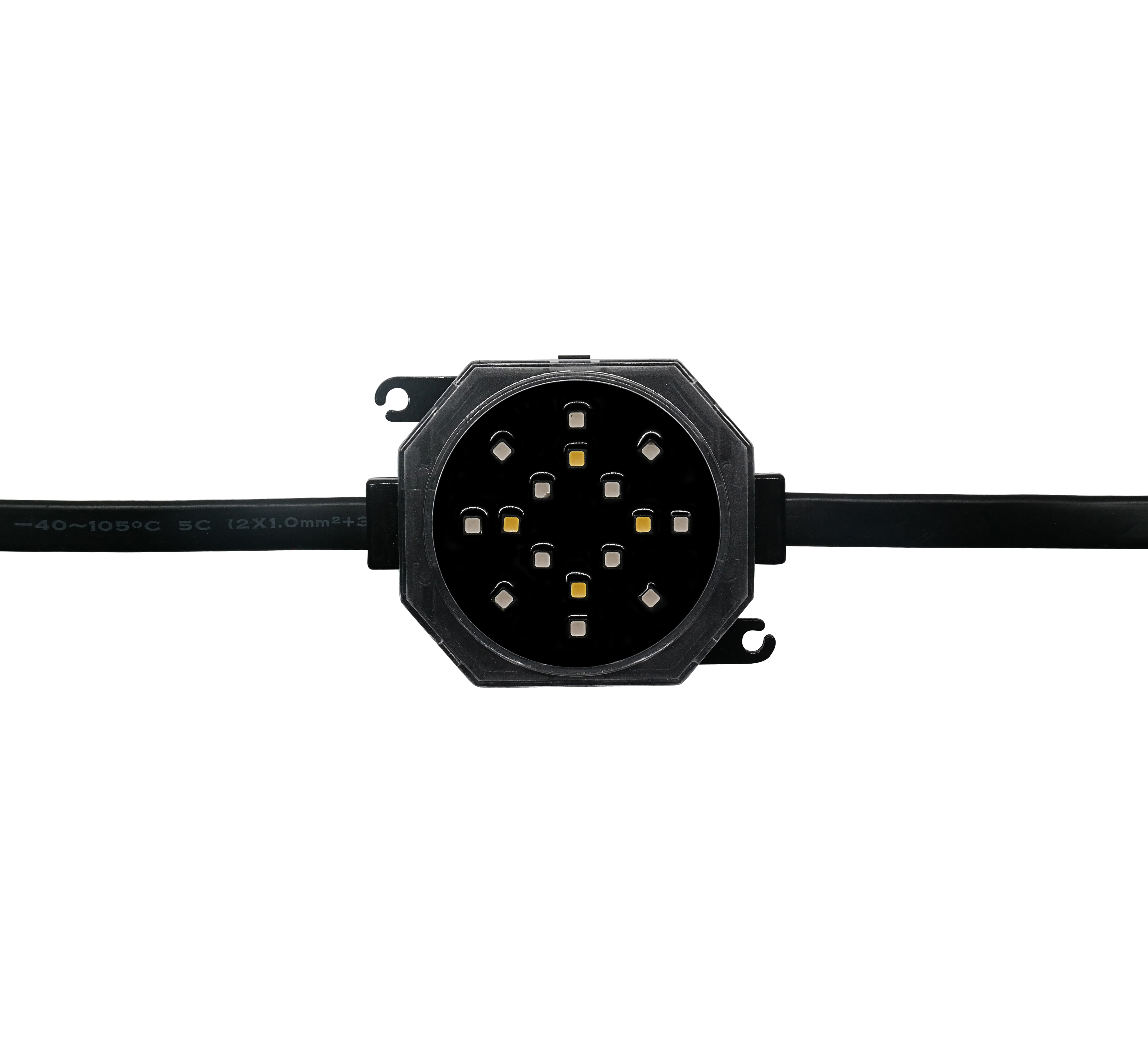

12-LED Diamond Point Light

No.YY-DGY-F055
This 12-LED diamond point light features a durable die-cast aluminum housing with an IP67 reliable waterproof rating for demanding outdoor use. Equipped with 12 high-brightness RGB and white LEDs for rich, uniform illumination. Integrated with a 5-core flat cable and connectors for quick, solderless daisy-chain installation. Ideal for building outlines, bridges, and landscapes. Supports customized dynamic lighting effects.
12 High-Brightness LED Matrix: Built with 12 premium LEDs per unit, delivering high luminous flux and uniform color mixing for rich, detailed RGB full-color and white light effects.

IP67 Professional Waterproof Structure: Adopts a fully sealed die-cast aluminum shell and potting waterproofing technology, effectively preventing stormwater and moisture intrusion for long outdoor service life.

5-Core Flat Cable Solderless Series: Equipped with high-quality 5-core flat waterproof cables and male-female connectors for plug-and-play use, dramatically improving wiring and installation efficiency in large projects.

Excellent Thermal Conductivity: The die-cast aluminum body combined with an optimized heat dissipation design effectively lowers junction temperatures, ensuring stable operation under prolonged high power.
$3.78-5.16
Variations
Edit selections
POWER: 2.88W
2.88W
3.84W
LED COLOR: RGB
RGB
RGBW
Select variations and quantity
POWER: 2.88W
2.88W
3.84W
LED COLOR: RGB
The min. inquiry quantity is 0. Add 0 more to continue.
RGB
-
RGBW
-
Subtotal
-
Download
View all downloads
  • YY-DGY-F055,MY SHOP,YY-DGY-F055
  • YY-DGY-F055,MY SHOP,YY-DGY-F055
  • YY-DGY-F055,MY SHOP,YY-DGY-F055

Description

参数 Parameter 规格 Specification
公司品牌 Company Brand YUEYAO
产品型号 Model No YY-DGY-F055
可选功率 Power 2.88W/3.84W
输入电压 Input Voltage DC24V
色温 Color Temperature RGB/RGBW
工作温度 Operating Temperature -40℃ to+105℃
灯具尺寸 Dimensions L65*W60*H15.2MM
外壳材质 Housing Material PC
中间间距 Mid-distance interval 10cm minimum
连接数量 Number of connections 100pcs/bunch
控制方式 Control Type ON/OFF/ DMX512
防护等级 IP Grade IP67
适用场景 Application Building facades ,Stadiums ,Large landmark lighting , Holiday decorations
