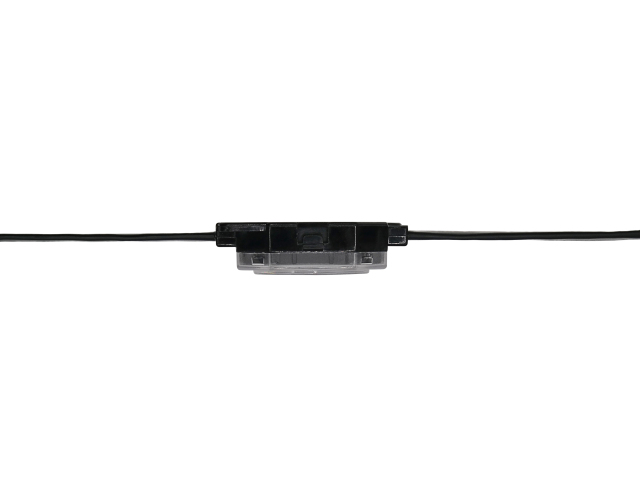

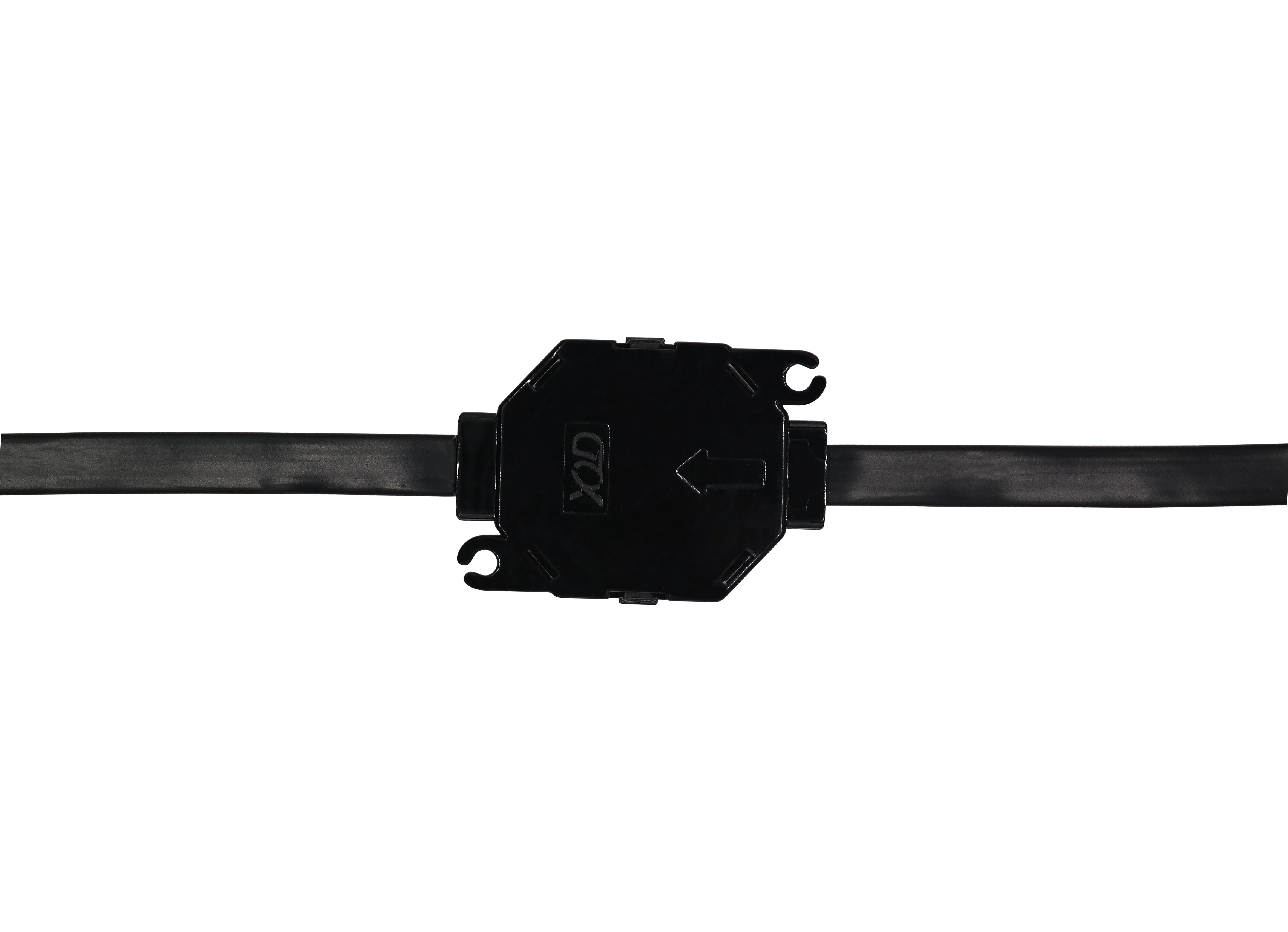

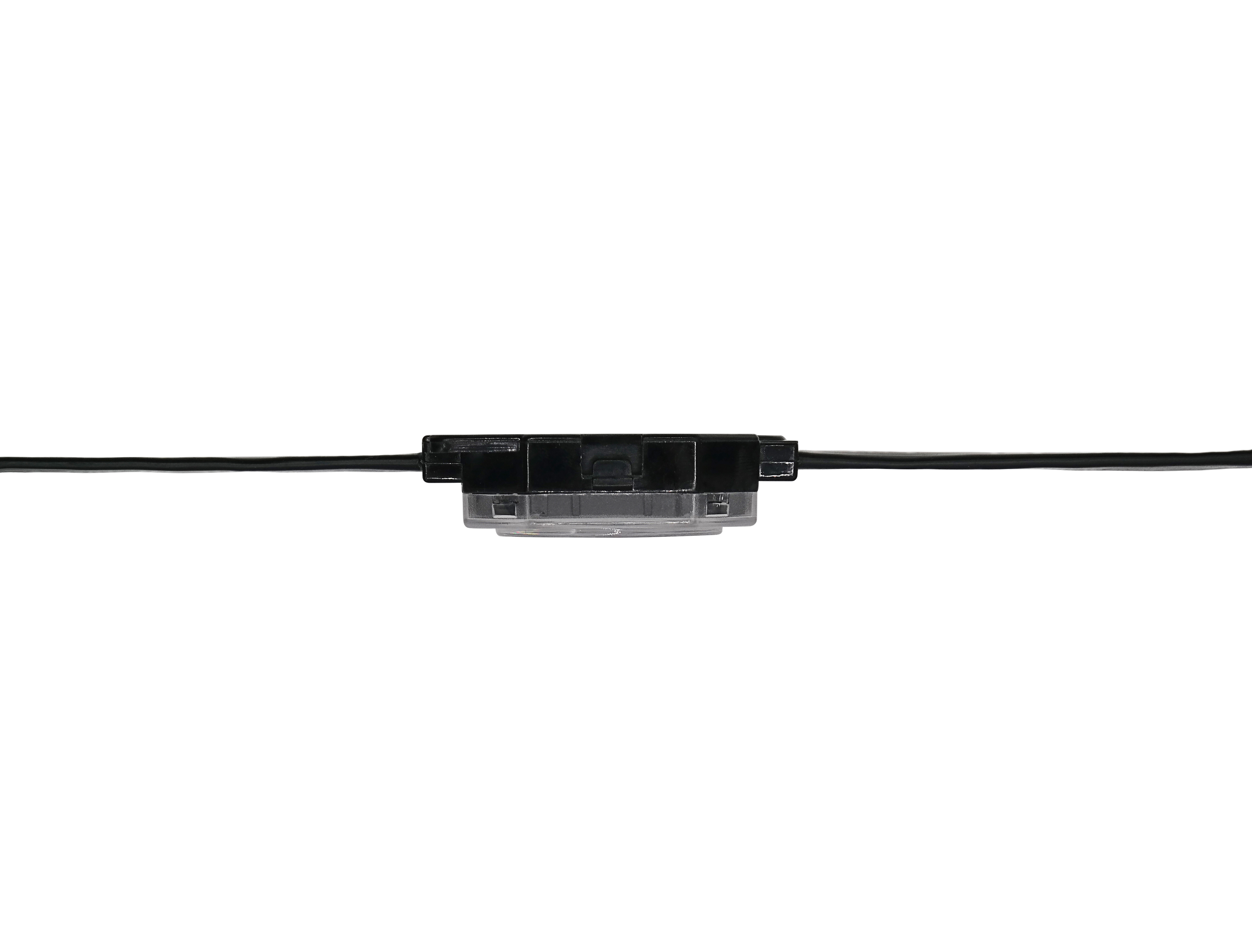

IP67 Professional Waterproof Protection: Fully sealed die-cast aluminum housing with premium waterproof connectors and potting technology, fearless of heavy rain and water accumulation, ensuring safe outdoor usage.

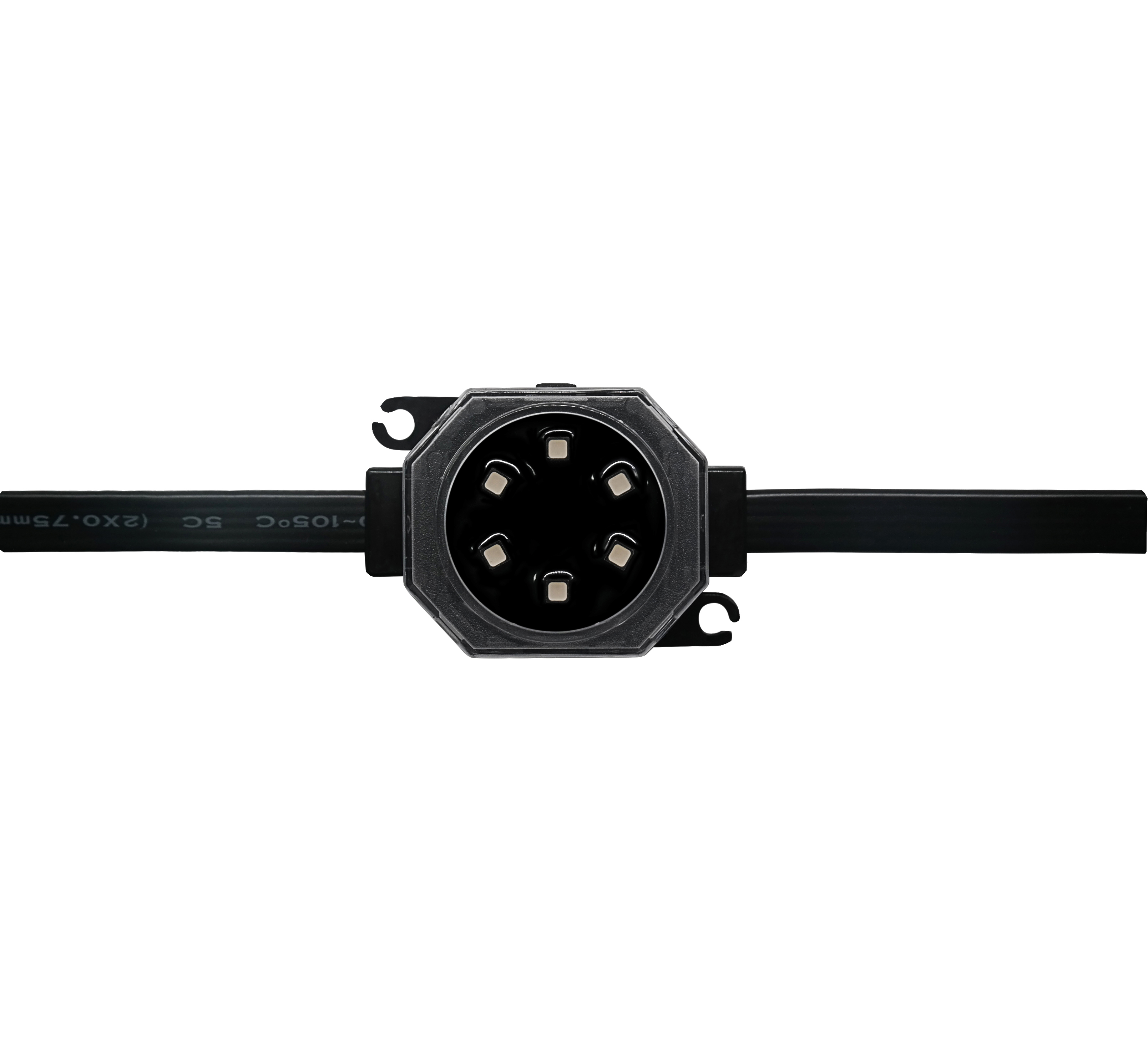

Efficient 6-LED Lighting Matrix: Equipped with 6 high-brightness SMD LEDs per unit for uniform and ample illumination, achieving extensive visual coverage with a compact form factor.
Unique Industrial Diamond Shape: Features a geometric diamond-cut design with a strong technological feel, allowing flexible layout to enhance the overall aesthetics of engineering projects.
Flat Cable Fast Daisy-Chain Connection: Features integrated flat waterproof cables with male-female connectors for quick plug-and-play series wiring, greatly reducing on-site difficulty and saving labor and time costs.
High-Thermal Die-Cast Aluminum Structure: The all-aluminum lamp body ensures excellent heat dissipation, effectively lowering LED junction temperatures and significantly prolonging the overall lifespan of the fixtures.
| 参数 Parameter | 规格 Specification |
| 公司品牌 Company Brand | YUEYAO |
| 产品型号 Model No | YY-DGY-F035 |
| 可选功率 Power | 0.72W/1.92W |
| 输入电压 Input Voltage | DC24V |
| 色温 Color Temperature | RGB/RGBW |
| 工作温度 Operating Temperature | -40℃ to+105℃ |
| 灯具尺寸 Dimensions | L45*W40*H15.2MM |
| 外壳材质 Housing Material | PC |
| 中间间距 Mid-distance interval | 10cm minimum |
| 连接数量 Number of connections | 100pcs/bunch |
| 控制方式 Control Type | ON/OFF/ DMX512 |
| 防护等级 IP Grade | IP67 |
| 适用场景 Application | Building facades ,Stadiums ,Large landmark lighting , Holiday decorations |
